How Do Scrap Car Shredders Achieve 98% Metal Recovery Rate?

Learn about the functions, selection, and resource recycling value of scrap car shredders, and see how industry cases achieve high recovery rate goals.

1. Core Value of Scrap Car Shredders: What You Need to Know

With the global demand for processing about 50 million scrap cars each year, "automotive waste" is no longer an environmental burden—scrap car shredders, as core equipment in the dismantling process, are driving the closed-loop implementation of "resource recycling".

Approximately 75% of the components in End-of-Life Vehicles (ELV) are recyclable materials, including 48% steel, 8% aluminum, 3% copper, and 16% plastic. Shredders are the key to "turning waste into treasure":

• Basic Principle: Shredders process entire vehicles (or dismantled body frames, engine housings, and other hard components) into uniform 5-10cm particles through the full process of "hydraulic feeding → heavy hammer crushing → multi-layer screening → intelligent sorting". Different materials are then separated using magnetic separation, air separation, flotation, and even AI visual recognition technology.

• Compliance Requirements: It fully meets the requirements of "95% material recovery rate and 85% material reuse rate" and complies with the regulation of "prohibiting landfilling of recyclable components", helping enterprises avoid environmental penalties of up to $100,000.

2. 3 Core Functions of Scrap Car Shredders and Real-World Cases

1. Efficient Crushing: How to Achieve 98% Metal Recovery Rate?

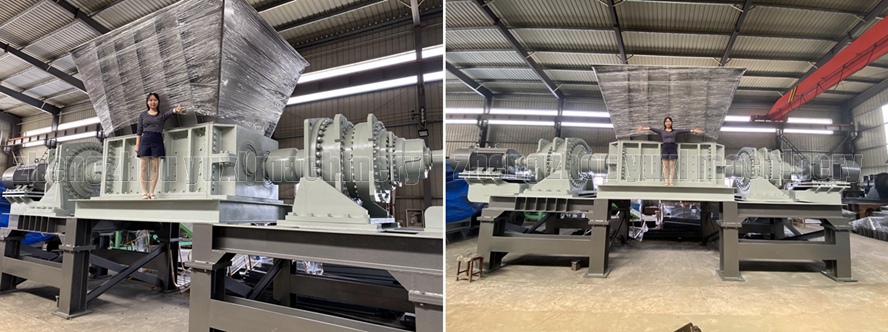

The core of modern scrap car shredders is the "heavy crushing system"—equipped with manganese steel hammers with a thickness of ≥4 inches and a hardness of 55HRC or higher, which can easily crush high-strength steel and aluminum alloy components of car bodies. The feed opening width generally exceeds 72 inches, accommodating dismantled vehicle frames directly, with a processing capacity of 10-20 tons per hour.

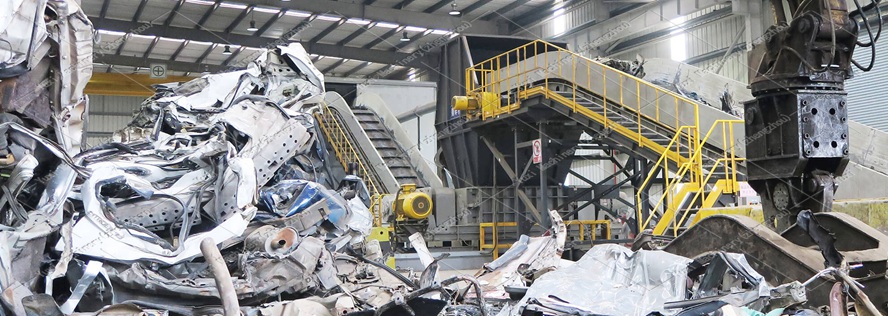

At the Berlin recycling plant of Germany's Daimler Group, a shredder with a capacity of 20 tons per hour can process 20 scrap Mercedes-Benz cars per hour: After crushing, steel particles are adsorbed by strong magnets when passing through magnetic separators, while aluminum and copper are separated via "eddy current sorting"—ultimately achieving a 98% steel recovery rate. This reduces the mining of 20,000 tons of raw iron ore annually, equivalent to saving 27,000 tons of standard coal energy consumption.

2. Environmental Emission Reduction: How to "Turn 8,000 Tons of CO₂ into Energy"?

Traditional manual dismantling of scrap cars generates large amounts of dust, waste liquid, and Volatile Organic Compounds (VOCs), while modern shredders integrate a full set of environmental protection systems:

• Dust Collection: Through negative pressure adsorption devices and HEPA filters, the collection rate of metal dust and plastic particles during crushing is increased to 99%, with an emission concentration of ≤0.004 grains/ft³, far below the standard of "0.012 grains/ft³".

• Waste Liquid Treatment: The anti-seepage tank at the bottom of the machine collects oil and coolant flowing out during crushing, which is transported to waste liquid treatment tanks via pipes and can be reused as industrial fuel after distillation and purification.

• Waste Gas Recovery: Shredders equipped with Regenerative Thermal Oxidizers (RTO) can convert VOCs generated from crushed plastic into heat energy for factory heating or hot water supply.

Auto Shredder in Michigan, USA, reduces CO₂ emissions by 8,000 tons annually through this system, equivalent to planting 45,000 trees. It has also obtained relevant certifications, and its processing subsidy per ton of scrap cars is 12% higher than the industry average.

3. Intelligent Sorting: How Does AI "Precisely Avoid" New Energy Vehicle Batteries?

With the growth in the number of end-of-life new energy vehicles, shredders have also upgraded their "intelligent sorting module"—equipped with 3D vision cameras and machine learning algorithms, it can identify hazardous components such as lithium battery packs and circuit boards in particles within 0.1 seconds and sort them separately via pneumatic valves to avoid explosions or pollution during crushing.

At the GEM Recycling Industrial Park in Ningbo, China, this intelligent shredder is used to process scrap new energy vehicles: The AI system first identifies and separates battery packs, then crushes and sorts the remaining body. Approximately 5,000 tons of power battery materials are recovered annually, with a recovery rate of over 90% for cobalt and lithium. Relevant data is synchronized to the local environmental protection department's supervision platform to ensure traceability of each battery.

3. 4 Key Details for Selecting and Operating Scrap Car Shredders

1. Equipment Selection: Choose "Mobile/Fixed Type" Based on Scale

• Small Mobile Shredders: Feed opening width of 48-60 inches, capacity of 5-8 tons per hour, suitable for county-level recycling points or township dismantling plants. They can be driven directly to scrap car storage sites for operation, saving transportation costs.

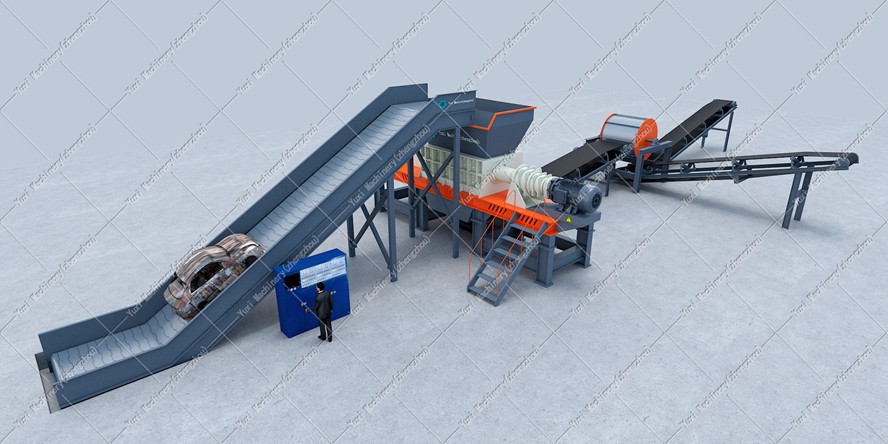

• Large Fixed Production Lines: Feed opening width of 72-88 inches, capacity of 15-20 tons per hour, suitable for urban industrial parks or large-scale recycling enterprises. They require supporting sorting and environmental protection systems, with an initial investment of $2-5 million, but can reduce processing costs per ton by 30%.

2. Compliance Certification: Avoid the Pitfall of "Unqualified Equipment"

Prioritize equipment with relevant safety, environmental protection, and electromagnetic compatibility certifications—shredders without corresponding certifications cannot be put into production in Europe and the United States, and equipment without environmental management system certification will have limited production capacity.

3. Maintenance Tips: 3 Techniques to Extend Equipment Life

• Hammer Replacement: Inspect hammer wear after processing 1,000 tons of scrap cars. Replace immediately when wear exceeds 30%, otherwise, crushed particles will be uneven and sorting efficiency will decrease by 15%.

• Sensor Cleaning: Clean the cameras and sensors of the AI sorting system with compressed air monthly to avoid reduced recognition accuracy due to metal dust coverage.

• Hydraulic System Maintenance: Replace hydraulic oil quarterly and use filter elements with a filtration accuracy of 10μm to prevent hydraulic pump blockage.

4. Cost Control: Cost Reduction Logic from "Raw Materials to Sales"

• Raw Material End: Sign long-term recycling agreements with local 4S stores and auto repair shops to lock in scrap car sources at a price "5% below the market price".

• Operation End: Adopt "three-shift" operation to keep the equipment running for more than 20 hours a day, amortizing depreciation costs.

• Sales End: Sign "annual supply agreements" with steel mills and plastic modification enterprises to sell recycled resources at "bulk prices", increasing the selling price of steel by $8-10 per ton.

4. Frequently Asked Questions (FAQ)

1. Can Scrap Car Shredders Process Battery Packs of New Energy Vehicles?

Yes, but they need to be equipped with a "pre-dismantling + explosion-proof crushing" module: Manually remove the battery pack shell first, then send the battery modules to an "inert gas protection crushing chamber" to avoid combustion caused by lithium metal contact with air. Some high-end intelligent models can automatically avoid battery components through AI recognition and sort them separately.

2. What is the Specific Energy Consumption and Operating Cost of Shredders?

Taking a fixed shredder with a capacity of 15 tons per hour as an example:

• Energy Consumption: 150-225 kWh per hour. At an industrial electricity price of $0.12/kWh, the electricity cost is $18-27 per hour.

• Maintenance Cost: Approximately $5,000 per month for replacing hammers, filter elements, and other accessories, with a processing cost of $10-15 per ton.

• Labor Cost: 3 operators per production line, with a total monthly salary of approximately $6,000, and a processing cost of $13-18 per ton.

• Total Cost: The processing cost per ton of scrap cars is $80-120, while the selling price of recycled resources is $150-200, with a profit of $70-80 per ton.

3. Can Crushed Plastic Be Directly Used in Automobile Production?

After sorting and purification, PP (polypropylene) and PE (polyethylene) plastics can meet the raw material standards for automotive interior parts through "filling modification" or "reinforcement modification"—after adding 20% glass fiber, the tensile strength can reach 4,350 psi or higher, meeting the procurement requirements of enterprises such as BMW and Tesla. Currently, the proportion of recycled plastic in some models of these enterprises exceeds 15%.

4. Is It Suitable for Small-Scale Recycling Enterprises to Purchase Shredders?

It is not recommended to purchase independently—a small mobile shredder costs approximately $500,000-800,000, and the annual processing volume of county-level recycling points is usually less than 10,000 tons, resulting in an equipment idle rate of over 40%. It is recommended to choose "shared shredder" services or cooperate with local large-scale recycling enterprises, with processing entrusted at a price of $20-30 per ton, which can save more than 70% of the initial investment.

Scrap car shredders are no longer just simple "crushing tools"—they are core hubs connecting "scrap car recycling → resource regeneration → industrial raw materials". They reduce the mining of raw minerals through a 98% metal recovery rate, convert waste gas into heat energy through VOCs recovery systems, and "turn waste into treasure" for new energy vehicle batteries through AI sorting technology. From Daimler's Berlin factory in Germany to GEM's Ningbo industrial park in China, shredders are using the logic of "technology + compliance + operation" to turn "automotive waste" into a green industry with annual profits exceeding $10 million. For recycling enterprises, choosing the right equipment type, doing a good job in maintenance details, and connecting upstream and downstream channels can achieve the dual goals of environmental protection and profitability under the global "dual carbon" policy.
